Expansion Joint สายอ่อน เหล็ก สแตนเลส

SKU flexible-joint Category Tag
pressure gauge diaphragm seal valve pako engineering qr code

*เนื่องจากสินค้าบางรายการของทางบริษัท จำเป็นต้องระบุรายละเอียดหลายขั้นตอน สอบถามรายละเอียดได้ที่ sales@pako.co.th
Add Line เพิ่มเพื่อนขอใบเสนอราคาได้ที่ LINE Official Click Here

Flexible joint

Flexible corrugated compensator welding connection metal stainless steel expansion bellow

Stainless steel expansion bellows is a kind of compensation element.The effective expansion and deformation of the main bellows are used to absorb the size changes of the pipelines due to the heat expansion and contraction, or compensate the axial, transverse and angular displacement of the pipelines. It can also be used to reduce noise and vibration and widely used in modern industry.

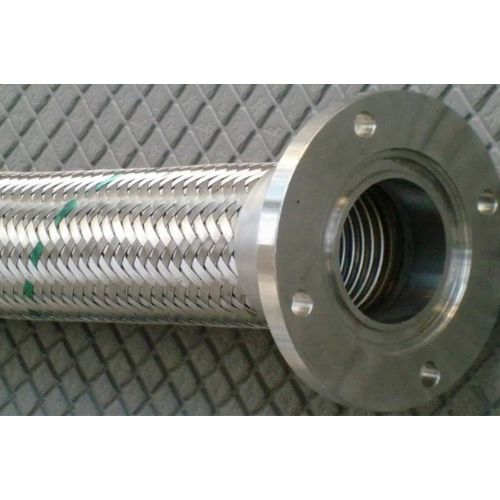

รูปถ่ายสินค้าจริง

Specification

Flexible metal braided hoses and fittings can be used widely in systems like water, steam, hot oil and gas with their resistance to pressure and flexibel structure.

They are utilized for conducting liquids, compensating the problems originated from installation, absorbing vibrations and expansions.

Flexible metal hoses may be strengtened by double braiding in order to increase their resistance to pressure and environmental conditions. It is also possible to reinforce them by springs with different wire thicknesses or by stripwounds to lengthen their service life for more sever environmental condition.

Connections flange,thread,quick released
Medium weak alkali,steam,water,gas,thermic oil
Material stainless steel,carbon steel,chrome steel
Pressure 0.6Mpa – 2.5Mpa
Package commercial plastic bag+carton box+wooden case
Application heating,ventilation,conditioning systems,iron and steel industry,chemical and petrochemical facilities,oil and gas refineries,chemistry and food industries,aircraft and ship construction facilities.
