ARTIA | ILI-P16 | Lift Check Valve

Relate Link

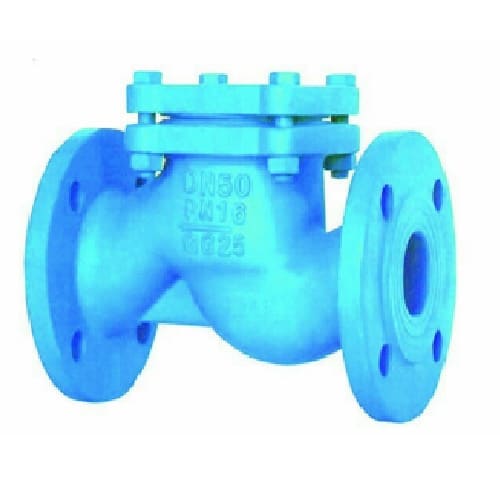

Cast Iron S-Pattern Lift Check Valve
Model : ILI-P16

Specification Standards :

• Design, manufacture conforms to DIN3356
• Face to face dimension conforms to series 1 of BS EN558-1
• Flange drilled conforms to BS EN 1092-2 of

Features :

• Bolted Bonnet
• Hand Wheel operate

Applications

• For general and industrial service
• Applicable medium : Water , Oil , Steam

Test Requirements

• Working Pressure : 150 PSI (10 Bar)
• Maximum Pressure : 200 PSI ( 14 Bar)
• Shell Test Pressure : 300 PSI (21 Bar)
• Applicable Temperature : Less than 200 °C
