UNI-D | USF SERIES

Description

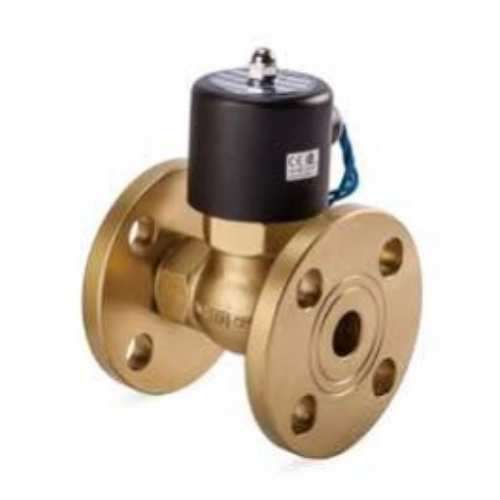

“UNI-D” 2/2  BRONZE SOLENOID VALVE , USF SERIES



PRODUCT DESCRIPTION

∙ USF series is multiplex, pilot operated piston, conductive and normally closed (NC) 2/2 way solenoid valve.
Availability of fluid type:water, air, steam, heavy oil

CAUTIONS:

∙ Minimum pressure to open:over 0.5~1 kgf-c㎡
∙ Before pipelining, the pipe line must be very clean without any contaminants or any other things not ought to be existed.
∙ To prolong the life time of the product, Y-line filter should be installed in the front end of solenoid valve.
∙ AC voltage tolerance:±10%;DC voltage tolerance:±1%
∙ It should be installed horizontally;vertical installation is not advisable.

Not Suitalbe For Fluid As Below

∙ Liquid status when it is high temperature;solid status when it is cool.
∙ Corrosive fluid
∙ Viscosity over 20cst
