Plastic Rotameter Z-500 Series

SKU flpr-flpr-well-z-500-series-water Category Tag
pressure gauge diaphragm seal valve pako engineering qr code

*เนื่องจากสินค้าบางรายการของทางบริษัท จำเป็นต้องระบุรายละเอียดหลายขั้นตอน สอบถามรายละเอียดได้ที่ [email protected]
Add Line เพิ่มเพื่อนขอใบเสนอราคาได้ที่ LINE Official Click Here

WELL | Flowmeter | Z500 Series

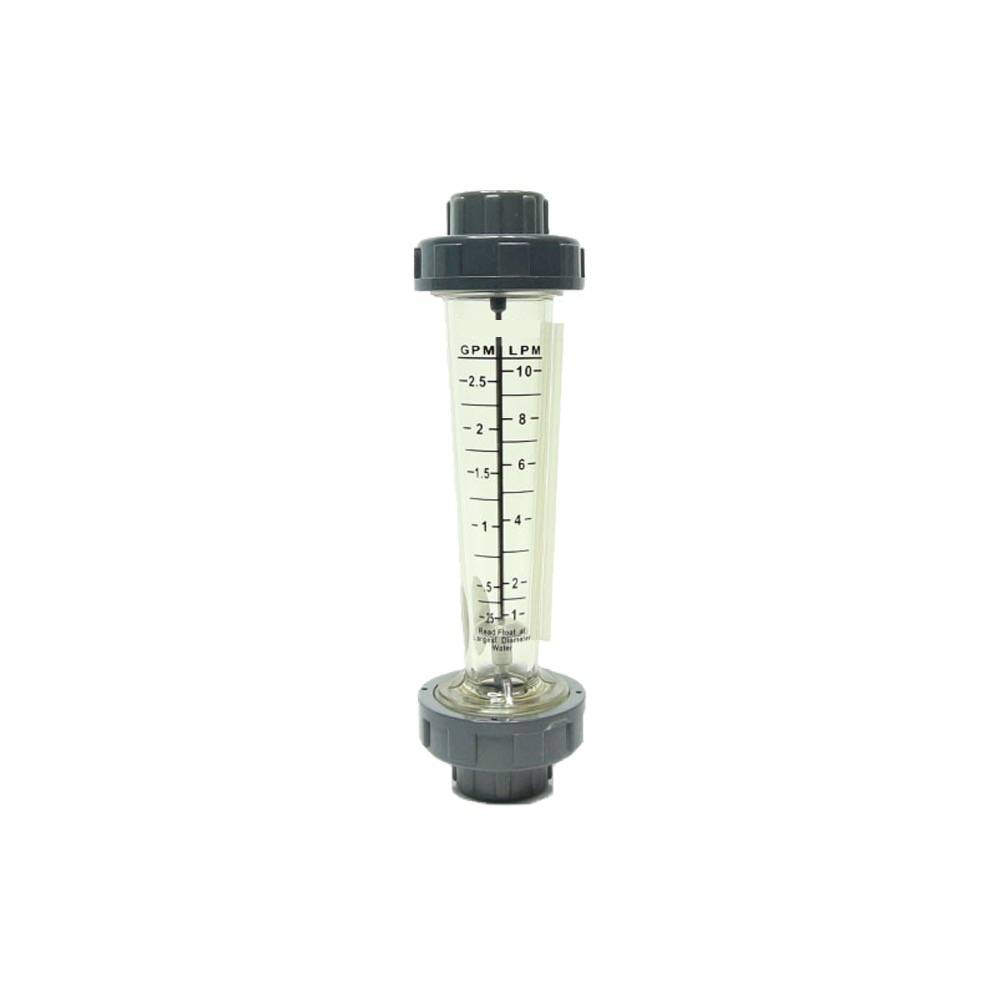

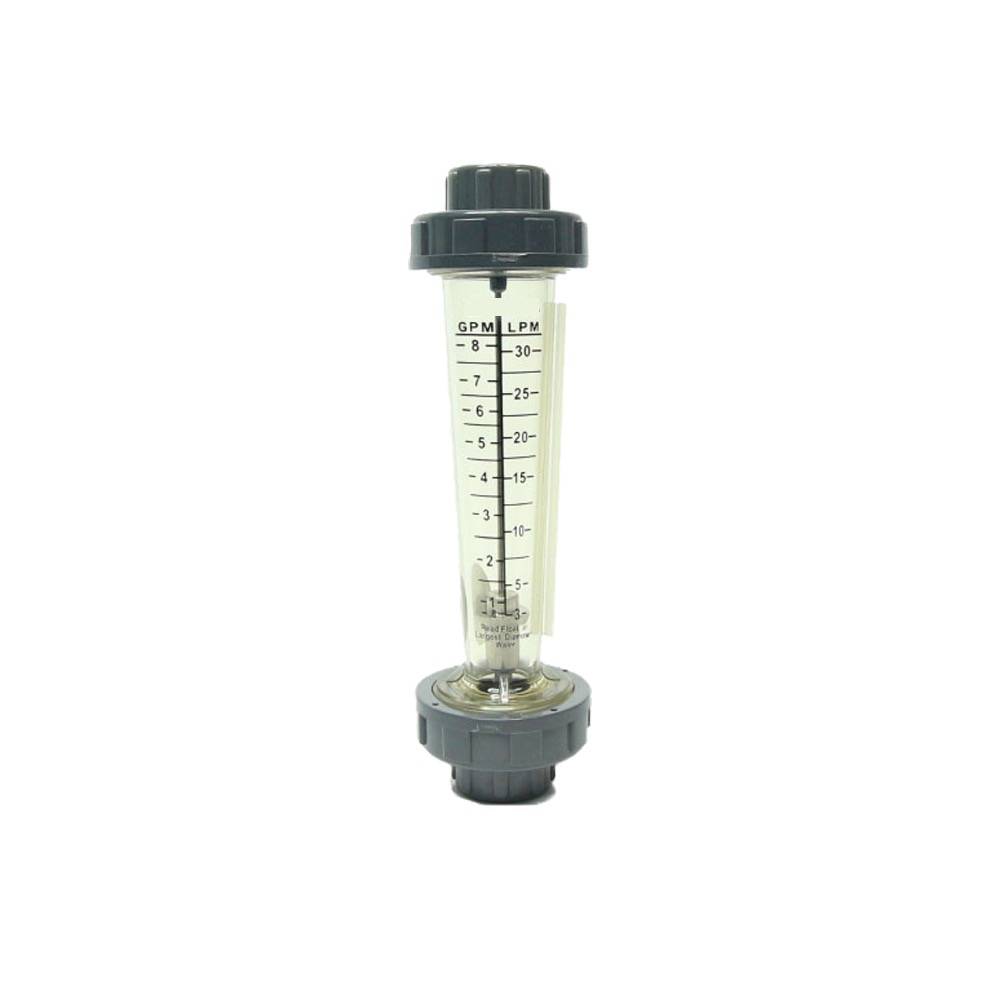

Flowmeter PRZ-500 (Old Model : Z-500) Series , The major parts of PRZ-500 series pipe flowmeter. material of taper tube is polycarbonate(PC), the float material is SS, can be acid-proof and alkali-resisting

Relate Link

Application

  • Working Pressure : ≤ 0.6 Mpa
  • Operating Temperature : ≤  60 °C
  • Material Body : PC
  • Material Connection : UPVC
  • Float : Stainless

Material

Body : Polysulfone (PSU), PC
Connection : PVC
Float : SS316
Guid rod : SS304
O-ring : EPDM



Range of Flowmeter PRZ-500 Series



Model Range
PRZ-5015 1-10 LPM
PRZ-5025 3-30 LPM
4-40 LPM
PRZ-5032 5-50 LPM
8-80 LPM
10-100 :PM
